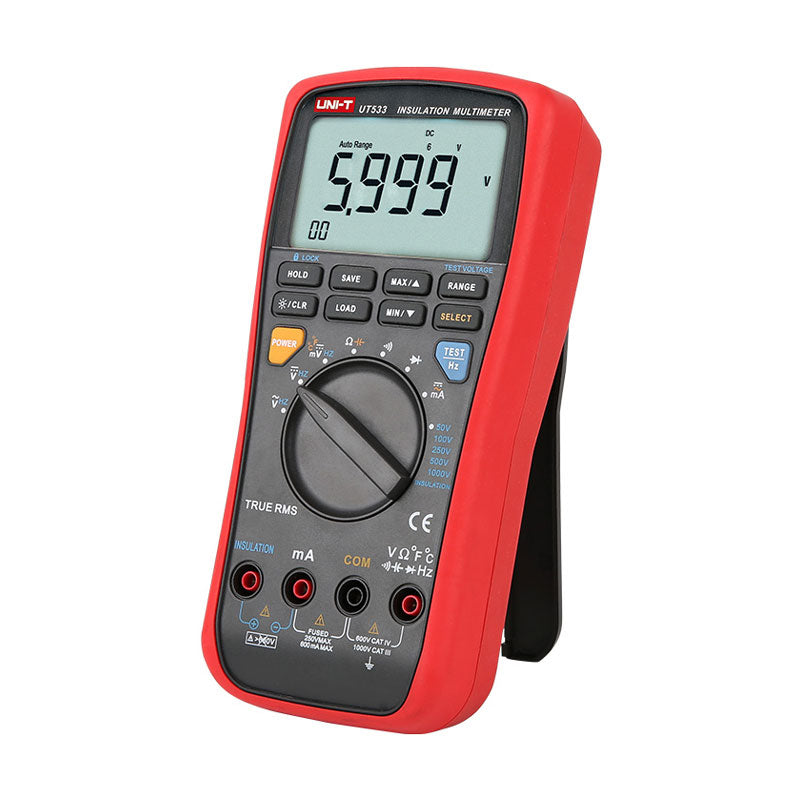

UNI-T UT533 True RMS Insulation Resistance Multimeter – 1000V, 2GΩ

The UNI-T UT533 is a premium 2-in-1 diagnostic instrument combining a 6000-count True RMS digital multimeter with a 1000V insulation resistance tester. Capable of measuring insulation up to 2GΩ across 5 selectable test voltages (50V to 1000V), it also tests AC/DC voltage, current, capacitance, frequency, and temperature. It features a 99-set data logging memory, making it ideal for comprehensive industrial troubleshooting.

Streamline your industrial diagnostic toolkit with the UNI-T UT533 True RMS Insulation Resistance Multimeter. For HVAC engineers and factory electricians in Pakistan, hauling a heavy megaohmmeter alongside a separate digital multimeter is cumbersome. The UT533 brilliantly fuses both tools into a single, rugged handheld unit without compromising on accuracy.

As a True RMS Multimeter, it delivers pinpoint accuracy on AC circuits, easily filtering out the electrical noise generated by Variable Frequency Drives (VFDs) found in modern textile mills and cement plants. When you suspect a motor winding failure, simply switch to the Insulation Tester mode. Generating up to 1000V, it measures insulation resistance up to 2GΩ. Complete with a K-type temperature probe and 99-set data memory, it is the ultimate all-in-one meter for maintaining chillers, commercial pumps, and 3-phase motors.

• Explore high-precision gear in our [Electrical & Electronics] section.
• Shop multipurpose diagnostic tools under [Insulation & Earth Testers].
• Compare hybrid multimeter models in our [Insulation Testers] collection.

Key Features:

• 2-in-1 Efficiency: Fully functional True RMS multimeter combined with a 1000V/2GΩ insulation tester.
• 5 Test Voltages: Select from 50V, 100V, 250V, 500V, and 1000V to safely test delicate electronics or heavy-duty motors.
• Temperature Testing: Includes a point-contact temperature probe (-40°C to 537°C) to monitor overheating motor bearings.
• Data Logging: Stores up to 99 measurement sets internally for easy reporting after complex site audits.

Frequently Asked Questions (FAQs):

Q: What is the price of the UNI-T UT533 in Pakistan?

A: Visit Kamadi.pk for the current price. We guarantee genuine UNI-T products with fast nationwide shipping to Lahore, Karachi, and Islamabad.

Q: UT531 vs UT533: What is the difference?

A: The UT533 is the upgraded version. It tests insulation up to 2GΩ (compared to 600MΩ on the UT531) and includes the all-important Temperature measurement function, which is critical for motor diagnostics.

Q: Does it have auto-power off?

A: Yes, it features an automatic sleep mode to preserve the life of its 6x AA alkaline batteries.
