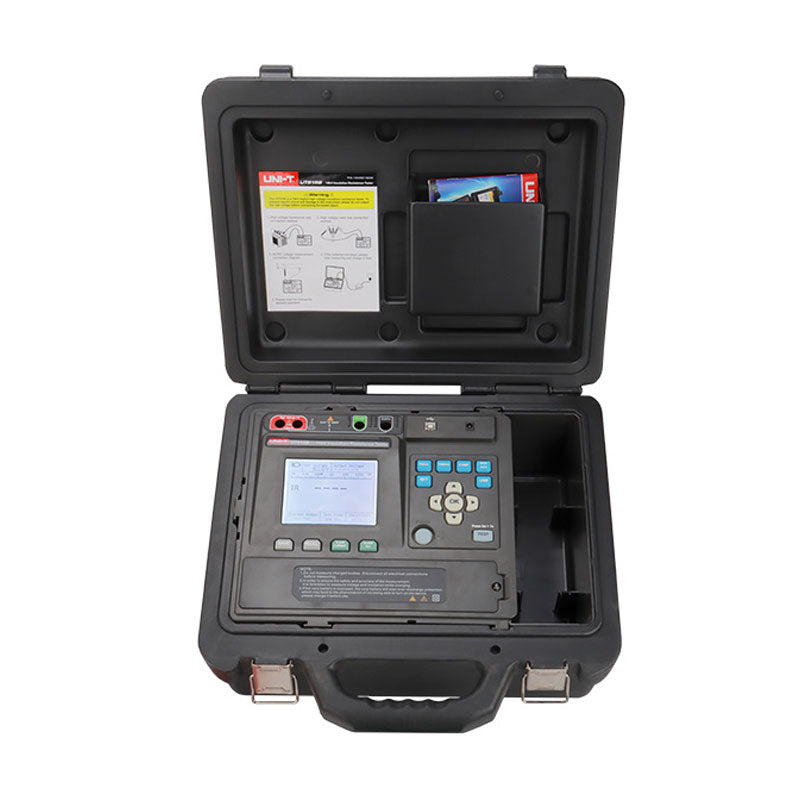

UNI-T UT515B 10kV High-Voltage Insulation Resistance Tester – 10TΩ

The UNI-T UT515B is a commercial-grade, high-voltage digital insulation resistance tester. Capable of generating up to 10,000V (10kV), it measures extreme insulation resistance up to 10 Tera-Ohms (10TΩ). Featuring stepping voltage controls, automatic PI/DAR calculations, and a high-capacity 5200mAh lithium battery, it is essential for diagnosing high-voltage grid transformers and industrial substations.

Command absolute diagnostic power with the UNI-T UT515B 10kV High-Voltage Insulation Tester. When dealing with high-voltage utility grids, massive industrial transformers, and heavy-duty subterranean cables, standard 1000V testers cannot provide enough stress to expose deep insulation flaws. The UT515B is built for heavy industry in Pakistan, generating an immense test voltage of up to 10,000 Volts (10kV).

This digital megaohmmeter boasts an astronomical measurement range of up to 10 Tera-Ohms (10TΩ). It features a highly advanced Stepping Voltage function, which increases the test voltage by 10% increments to observe how the insulation reacts to gradual electrical stress. Fully equipped to calculate Dielectric Absorption Ratio (DAR) and Polarization Index (PI) automatically, it is the ultimate predictive maintenance tool for grid engineers and high-voltage contractors to prevent catastrophic electrical failures.

• Browse heavy industrial tools in [Electrical & Electronics].
• Upgrade your grid diagnostics in [Insulation & Earth Testers].
• Compare high-voltage Megaohmmeters in [Insulation Testers].

Key Features:

• 10kV Output: Provides the massive electrical stress necessary to test multi-megawatt transformers and high-tension cables.
• 10 Tera-Ohm Range: Extremely high sensitivity allows for the detection of the absolute faintest leakage currents.
• Stepping Voltage Function: Automatically ramps up voltage in 10% steps to uncover hidden insulation weaknesses.
• 5200mAh Lithium Battery: The massive internal rechargeable battery guarantees hours of continuous high-voltage output in remote substations.

Frequently Asked Questions (FAQs):

Q: What is the price of the UNI-T UT515B in Pakistan?

A: Please request a B2B quotation on Kamadi.pk. We frequently supply this high-end instrument to WAPDA contractors and heavy manufacturing plants.

Q: Does it have a data-logging feature?

A: Yes, it stores up to 999 sets of test data internally, which can be downloaded to a PC via USB for comprehensive reporting.

Q: What is the short-circuit current?

A: It delivers a robust short-circuit current of ≥5mA (at 2500V-10kV), ensuring rapid charging of highly capacitive loads like long underground cables.
