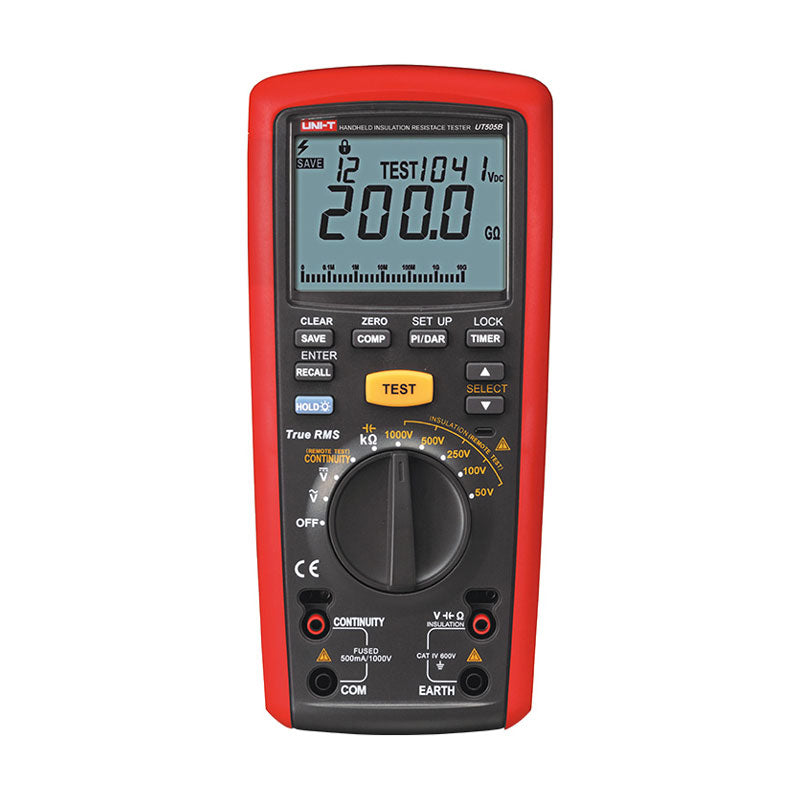

UNI-T UT505B Advanced Insulation Resistance DMM – 1000V, 200GΩ

The UNI-T UT505B is the flagship 1000V insulation multimeter in the 500 series. It vastly outperforms the UT505A by offering a staggering 200GΩ maximum resistance range. Furthermore, it incorporates Capacitance testing, Leakage Current measurement, Frequency testing, and an Auto Fuse Check. It is the ultimate forensic diagnostic tool for critical power infrastructure and high-end industrial maintenance.

Achieve absolute diagnostic supremacy with the UNI-T UT505B Advanced Insulation DMM. While the UT505A is an excellent tool, the UT505B is engineered for electrical forensics. When Pakistani engineers are troubleshooting critical infrastructure—such as power generation turbines or high-end pharmaceutical manufacturing lines—they need extreme sensitivity. The UT505B delivers this by expanding the resistance measurement limit to an astonishing 200GΩ.

This 2-in-1 True RMS Multimeter and 1000V Insulation Tester includes vital features missing from standard meters. It directly measures Leakage Current, allowing you to see exactly how much current is escaping through failing insulation. It also adds Capacitance and Frequency testing, essential for diagnosing complex motor start/run issues. The built-in Auto Fuse Check ensures your meter is always safe to operate, while the comprehensive PI/DAR and Step Voltage functions guarantee a perfect diagnostic profile every time.

• Discover top-tier industrial gear in [Electrical & Electronics].
• View flagship diagnostic meters under [Insulation & Earth Testers].
• Shop our most advanced DMM hybrids in [Insulation Testers].

Key Features:

• Massive 200GΩ Range: 10x more sensitive than the UT505A, designed for evaluating the absolute highest-grade industrial insulators.
• Leakage Current Measurement: Directly displays the micro-amps of current escaping through the insulation, providing undeniable proof of failure.
• Capacitance & Frequency: Fully integrated DMM functions required for advanced HVAC and VFD motor troubleshooting.
• Auto Fuse Check: Internally verifies its own safety fuses before allowing high-voltage tests, protecting the operator from catastrophic failure.

Frequently Asked Questions (FAQs):

Q: What is the price of the UNI-T UT505B in Pakistan?

A: Due to its advanced forensic capabilities, please request a quote on Kamadi.pk. We cater to specialized B2B industrial clients.

Q: UT505A vs UT505B: Which is the right choice?

A: Choose the UT505A for general industrial and commercial troubleshooting. You must choose the UT505B if you specifically require Capacitance testing, Leakage Current measurement, or need to measure resistance above 20GΩ.

Q: Does it have an analog bar graph?

A: Yes, the large 6000-count LCD features a fast-responding analog bar graph to visually track fluctuating resistance values.
