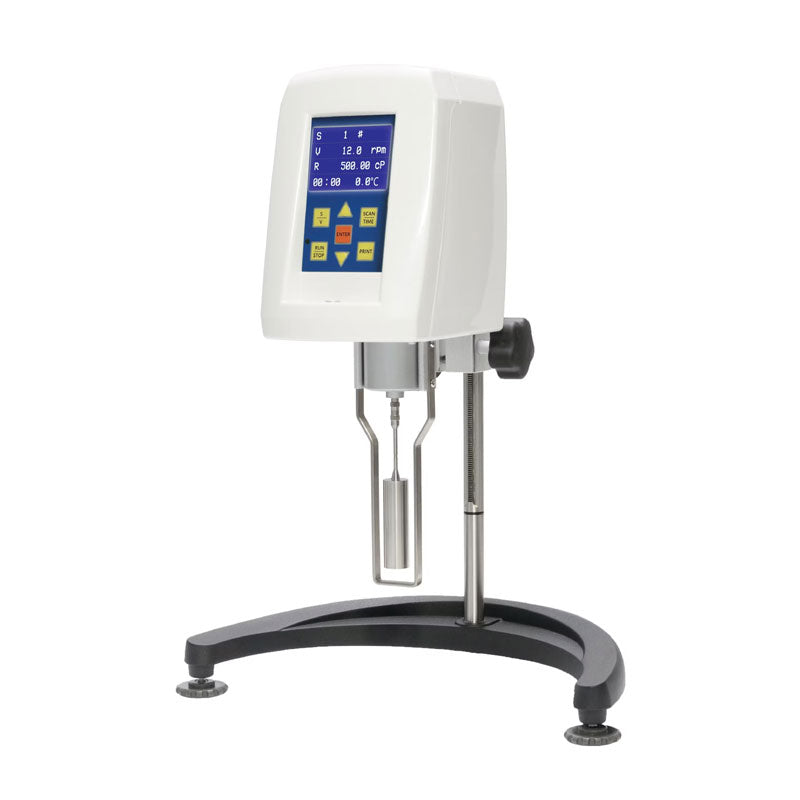

NDJ-8S | Digital Viscometer

The NDJ-8S Digital Viscometer is a laboratory and quality-control instrument used to measure the apparent viscosity of Newtonian and non-Newtonian liquids in production, formulation and research work. It is widely used in paints, coatings, inks, adhesives, grease, cosmetics, food products, pharmaceutical liquids, slurries, pulp, latex, and other semi-fluid materials. The NDJ-8S offers a wide viscosity measuring range from 1 mPa·s to 2,000,000 mPa·s, eight selectable speeds from 0.3 to 60 rpm, an LCD display, timing measurement, automatic scanning, an overflow alarm, and direct viscosity reading without manual calculation.

Pro Tip

For reliable viscosity results, control the sample temperature before testing and keep the torque value within the effective 15%–80% range. Viscosity changes strongly with temperature, so even a small variation can affect repeatability in paints, food liquids, coatings and pharmaceutical samples. Buy NDJ-8S Digital Viscometer from Kamadi Pakistan for laboratory viscosity testing and industrial quality control.

Buyer’s Selection Guide

Choose the NDJ-8S if you need a wide-range digital viscometer for low, medium and high-viscosity liquid testing. It is more suitable than basic 4-speed viscometers when your samples vary widely in viscosity or when you need slow-speed testing for thicker fluids. For samples below 15 mPa·s, select the optional No. 0 rotor with small sample adapter.

Key Features

• Wide 1 to 2,000,000 mPa·s viscosity range

• 8 selectable speeds from 0.3 to 60 rpm

• LCD display with direct viscosity reading

• Automatic scanning and overflow alarm function

• Suitable for paints, inks, adhesives, food, cosmetics and pharma liquids

Technical Specifications

• Model: NDJ-8S

• Product Type: Digital Rotational Viscometer

• Measuring Range: 1 mPa·s to 2,000,000 mPa·s

• Display Accuracy: 0.01 mPa·s

• Measurement Accuracy: ±3% full scale

• Repeatability: ±1.5% for Newtonian liquid reference

• Speed Range: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm

• Standard Rotors: 1#, 2#, 3#, 4#

• Optional Rotor: No. 0 rotor for samples below 15 mPa·s

• Power Supply: AC100–240V, 50/60Hz

Applications

• Paints, coatings and ink viscosity testing

• Adhesive, latex and resin quality control

• Food liquid and semi-fluid product testing

• Cosmetics and pharmaceutical formulation checks

• Slurry, pulp, grease and industrial fluid analysis
