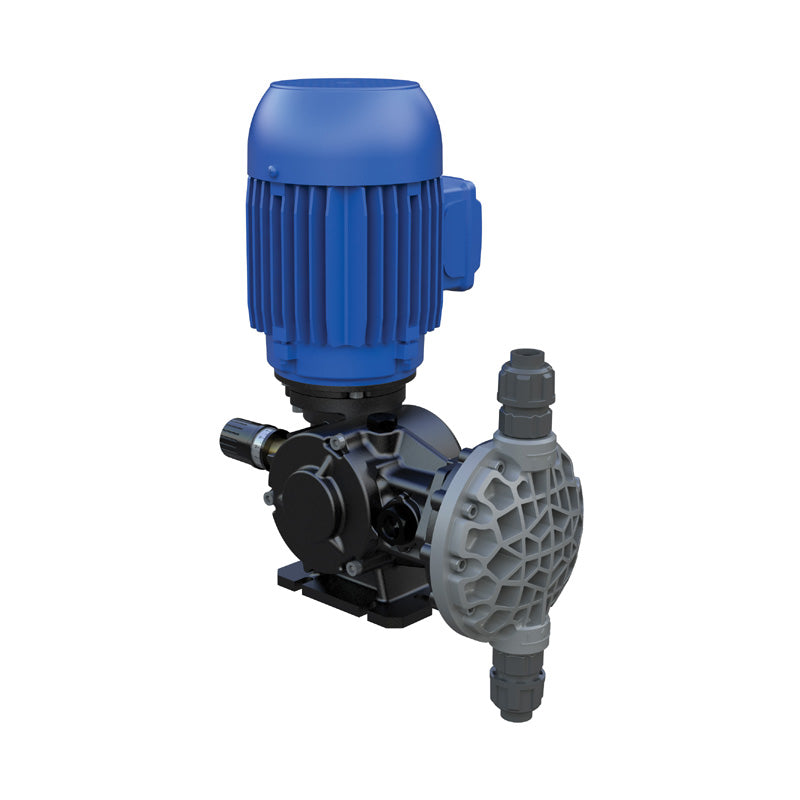

MS1B108C41A4000 | SEKO Spring Return Motorized Dosing Pump - 120L at 10Bar

Achieve industrial-grade precision in your chemical dosing with the Seko Spring MS1B108C41A4000, a high-performance motor-driven metering pump designed for aggressive water treatment applications in Pakistan. Part of the renowned "Spring" series, this pump utilizes a robust mechanical diaphragm mechanism to deliver a consistent flow rate of 120 Liters per hour at a maximum back-pressure of 10 Bar.

Built for durability in harsh environments, this specific model features a PVDF (Polyvinylidene Fluoride) pump head and Ceramic ball valves, offering superior resistance to highly corrosive chemicals like concentrated Sulfuric Acid, Sodium Hypochlorite, and strong alkalis. It is powered by a 0.37 kW 3-phase motor driving a spring-return mechanism at 116 strokes per minute, ensuring smooth and reliable operation. The stroke length can be adjusted manually via the precision knob from 0-100% while the pump is running, giving you total control over your process.

Frequently Asked Questions:

• Q: What does the code "41" mean in the model number?

  • A: The code "41" refers to the Liquid End Materials. This model is equipped with the highest grade materials: PVDF Pump Head, Ceramic Valves, FPM (Viton) Seals, and a PTFE Diaphragm. This makes it compatible with almost all aggressive industrial chemicals.

• Q: Is this pump suitable for 24/7 operation?

  • A: Yes. The MS1 series is designed for continuous industrial duty. The mechanical diaphragm design eliminates the hydraulic oil found in piston pumps, making it low-maintenance and ideal for long-running processes.

• Q: Can I adjust the flow rate?

  • A: Absolutely. The pump features a manual Micrometer Knob on the gearbox. You can turn this knob to adjust the stroke length (volume per stroke) from 0% to 100% without stopping the motor.

Buy Now: Equip your facility with the industry standard for chemical resistance. Order the authentic Seko Spring MS1B108C41A4000 exclusively at Kamadi Pakistan for the best price, official warranty, and expert technical support!
