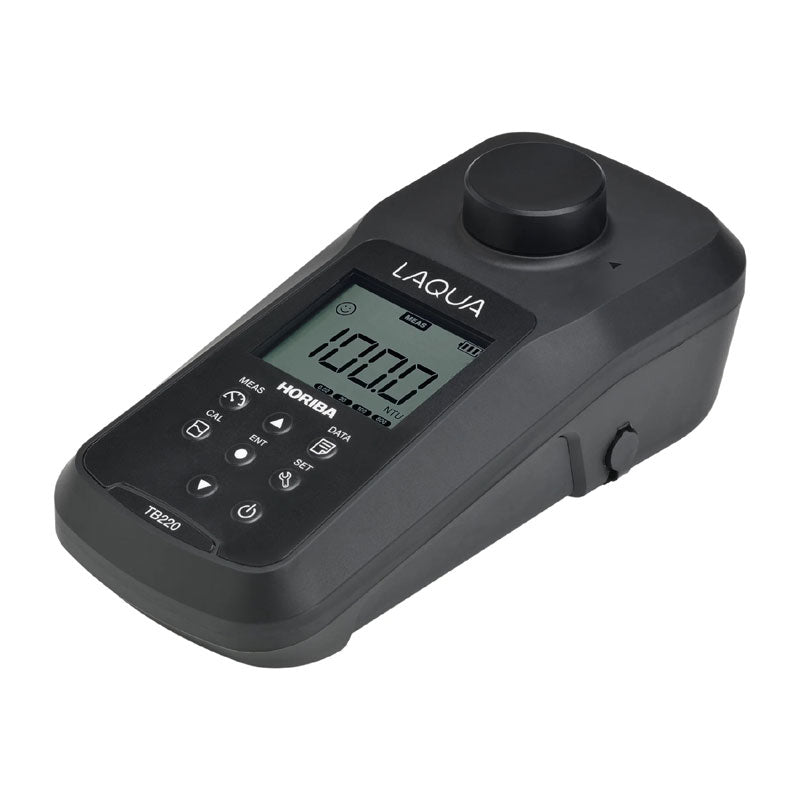

HORIBA LAQUA TB220 | Portable Turbidity Meter – Up to 2000 NTU

The HORIBA LAQUA TB220 Turbidity Meter is a portable instrument for measuring water clarity in drinking-water systems, wastewater plants, aquaculture, environmental monitoring and scientific laboratories. Its wide automatic measurement range supports both low-turbidity and heavily clouded samples, helping users evaluate suspended particles across routine and demanding water-analysis applications.

The meter uses a ratiometric method that combines nephelometric light scatter with transmitted-light signals for dependable turbidity testing. It supports calibration at up to four selectable points using supplied SDVB polymer standards and complies with ISO 7027 and DIN EN 27027 requirements. A backlit monochrome display, stability indicator and diagnostic messages make daily operation straightforward. The instrument stores up to 2,000 results with date and time stamps, while optional USB and printer connections support documentation. Its IP67-rated, shock-resistant and non-slip housing is suitable for laboratory and field use.

Turbidity Testing Tip: Wipe each vial with the supplied cloth, apply silicone oil when required and align the vial consistently to reduce errors from fingerprints, scratches or optical differences. Buy HORIBA LAQUA TB220 from Kamadi Pakistan for reliable turbidity analysis, competitive pricing and professional after-sales support.

Turbidity Meter Selection Guide

Choose the TB220 when you need portable turbidity measurement across low and high NTU levels, with multipoint calibration, traceable data storage and rugged protection for laboratory and field testing.

Key Features

• Automatic turbidity measurement up to 2000 NTU

• Ratiometric nephelometric and transmitted-light measurement

• Up to four selectable calibration points

• Stores 2,000 readings with date and time stamps

• IP67 waterproof, shock-resistant and non-slip housing


Technical Specifications

• Model: LAQUA TB220

• Product Type: Portable Turbidity Meter

• Measurement Range: 0.00–2000 NTU

• Resolution: 0.01 NTU, 0.1 NTU or 1 NTU according to range

• Accuracy: ±0.02 NTU or ±2% up to 1000 NTU; ±3% above 1000 NTU

• Calibration: Up to 4 points at 0.02, 20, 100 and 800 NTU

• Measurement Principle: Ratiometric nephelometric light scatter and transmitted light

• Compliance: ISO 7027 and DIN EN 27027

• Sample Volume / Memory: 10 ml / 2,000 records

• Protection / Power: IP67 housing / 4 AA batteries

Applications

• Drinking-water treatment

• Wastewater analysis

• Aquaculture monitoring

• Environmental water testing

• Scientific and industrial laboratories
