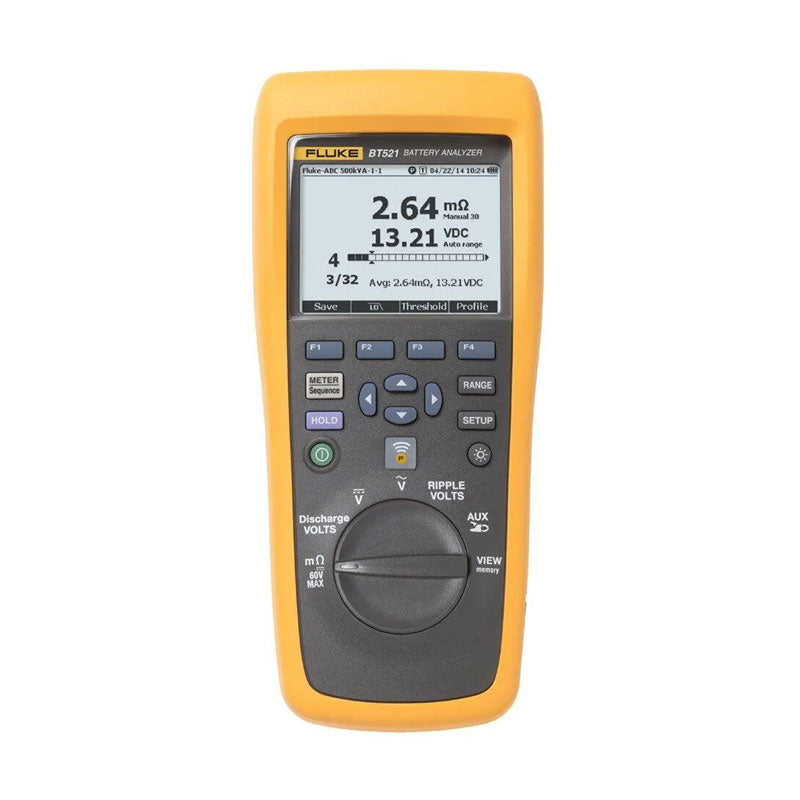

Fluke BT521 | Advanced Battery Analyzer with Temperature & Current Measurement

Battery resistance and voltage reveal important condition information, but temperature and charging current can provide additional clues when diagnosing an unreliable battery string. The Fluke BT521 Advanced Battery Analyzer combines the core BT500 testing functions with integrated battery-post temperature measurement and AC/DC current capability.

Its BTL21 intelligent probe incorporates an infrared temperature sensor that records the negative battery-post temperature during testing, while the included i410 clamp extends current measurement to 400 A AC/DC. The BT521 also extends DC voltage measurement to 1000 V and supports wireless communication through the dedicated Fluke Battery Analyzer mobile app for reviewing and transferring test data. Battery resistance, ripple voltage, discharge testing, sequence measurement, thresholds and automatic storage remain part of the platform. This makes the BT521 the most comprehensive model of the three standard BT500 configurations.

Advanced Battery Analyzer Selection Guide

Choose the BT521 when battery condition assessment should include temperature and charging/discharge current, or when wireless data transfer is valuable. The BT510 and BT520 are sufficient where these advanced measurements are unnecessary.

Market Relevance

The BT521 suits mission-critical Pakistani data centres, telecom networks, utility substations, large UPS systems, power plants, and industrial backup installations where detailed battery-health documentation is required. Buy the Fluke BT521 from Kamadi Pakistan for comprehensive stationary battery analysis.

Key Features

• Integrated infrared battery-post temperature measurement

• AC/DC current measurement with included i410 clamp

• Intelligent BTL21 probe with LCD and audio feedback

• Wireless communication through Fluke Battery Analyzer app

• Automated sequence, discharge and resistance testing


Technical Specifications

• Model: Fluke BT521

• Battery Resistance: 3 mΩ to 3000 mΩ

• DC Voltage: Up to 1000 V

• AC Voltage: Up to 600 V

• AC/DC Current: Up to 400 A with i410

• Temperature: 0°C to 60°C

• Frequency: Up to 500 Hz

• Ripple Voltage: Up to 6000 mV

• Ingress Protection: IP40

• Safety Rating: CAT III 600 V


Applications

• Critical UPS battery systems

• Telecom battery-bank analysis

• Substation battery maintenance

• Data-centre backup power

• Battery condition trending


Professional Tip: Compare temperature together with internal resistance—a battery showing both elevated resistance and abnormal terminal temperature deserves priority investigation within the string.
