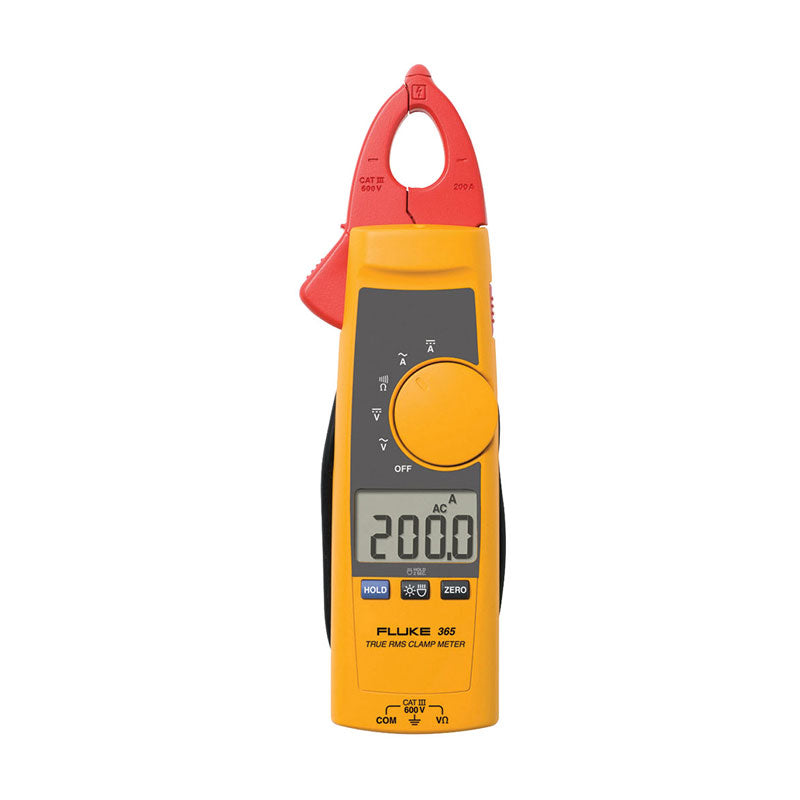

Fluke 365 | Detachable-Jaw 200A True-RMS AC/DC Clamp Meter

Measuring inside crowded electrical panels can be difficult when the clamp body cannot physically reach the conductor or the display is hard to see. The Fluke 365 True-RMS AC/DC Clamp Meter uses a small detachable jaw connected by a 1.2 m cable, so you can position the sensing head and display separately.

The detachable jaw measures up to 200 A AC/DC, while the meter also provides voltage measurement to 600 V AC/DC. A built-in flashlight helps identify conductors in poorly illuminated cabinets, and automatic ranging simplifies operation when access is restricted. Advanced signal processing provides stable readings in electrically noisy environments. Its compact body can also be handled while wearing protective equipment. The 365 is therefore especially useful for control cabinets, densely wired panels and other installations where conventional fixed-jaw clamp meters are physically awkward to use.

Tight-Space Clamp Meter Selection Guide

Choose the 365 when physical access is the main problem and a detachable clamp jaw will reach conductors that a normal meter cannot. For higher-current open-access measurements, select a conventional 370 Series clamp meter.

Market Relevance

The Fluke 365 is well suited to Pakistani control-panel builders, automation technicians, facility electricians and industrial maintenance teams working inside crowded MCCs and distribution cabinets. Kamadi Pakistan offers the Fluke 365 for accurate current measurement in hard-to-reach locations.

Key Features

• Detachable current-sensing jaw

• 1.2 m jaw cable for difficult access

• True-RMS AC/DC current measurement

• Built-in work light

• Compact automatic-ranging design


Technical Specifications

• Model: Fluke 365

• AC Current: Up to 200 A

• DC Current: Up to 200 A

• AC Voltage: Up to 600 V

• DC Voltage: Up to 600 V

• Jaw Opening: Approx. 18 mm

• Jaw Cable: 1.2 m

• Measurement Response: True-RMS

• Display: Backlit

• Safety: CAT III 600 V


Applications

• Crowded electrical panels

• MCC troubleshooting

• Control-cabinet maintenance

• Automation-system service

• Hard-to-reach conductor testing


Professional Tip: Secure the detachable jaw around the conductor before repositioning the display; this reduces movement at the measurement point and makes the design easier to exploit safely.
