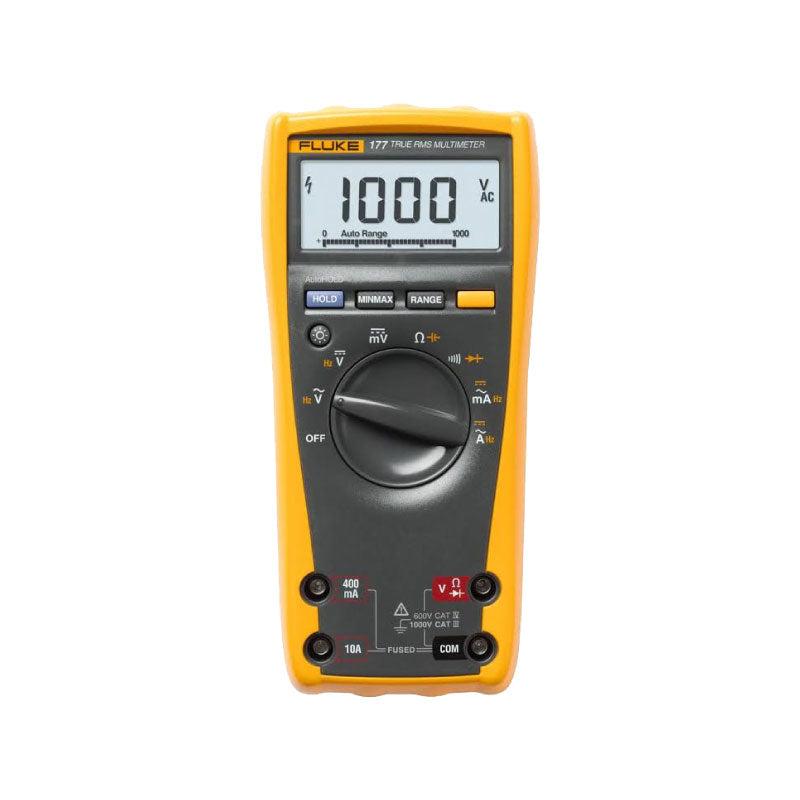

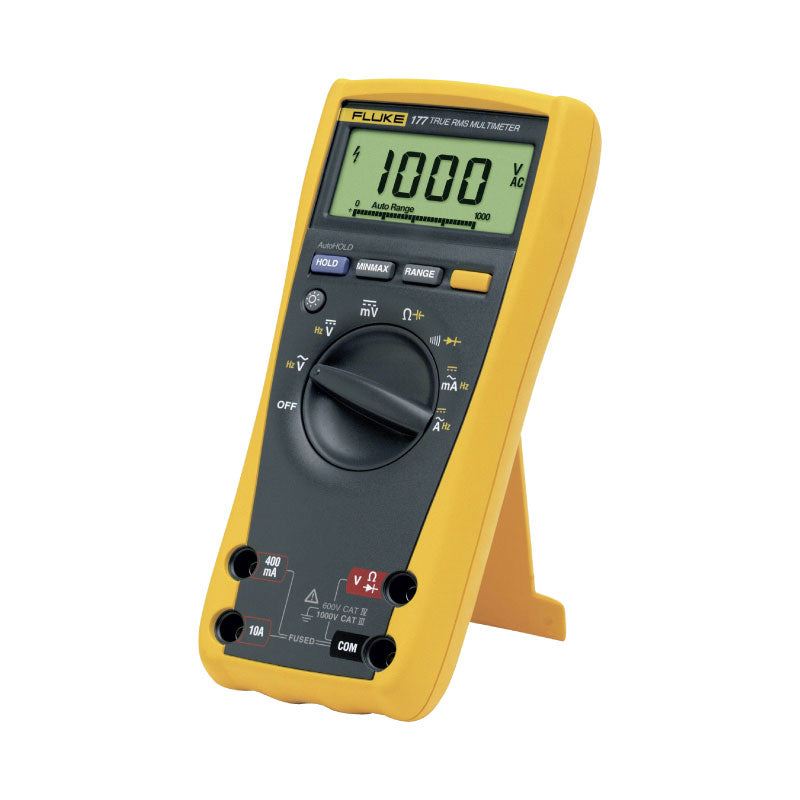

Fluke 177 | True-RMS Digital Multimeter for Electrical Maintenance

Professional electrical maintenance often requires better accuracy and waveform handling than an entry-level multimeter but not necessarily built-in temperature measurement. The Fluke 177 True-RMS Digital Multimeter meets that need with a strong combination of precision, safety, and straightforward operation.

It measures AC/DC voltage up to 1000 V, current up to 10 A, resistance up to 50 MΩ, capacitance, frequency, continuity, and diode characteristics. True-RMS AC measurement supports non-linear signals, while 0.09% basic DC voltage accuracy makes the meter suitable for demanding electrical and electronic troubleshooting. A 6000-count backlit display with analog bar graph improves readability and helps users follow changing signals. Auto/manual ranging, Display Hold, Auto Hold, and Min/Max/Average further streamline fieldwork. Compared with the 179, the 177 delivers essentially the same core electrical capability but omits temperature measurement.

Professional Electrical DMM Selection Guide

Choose the Fluke 177 when you need 0.09% DC accuracy, True-RMS measurement, and a backlit display, but don't need temperature measurement. Move to the 179 when temperature is routinely part of maintenance work.

Market Relevance

The Fluke 177 is a practical choice for Pakistan's electrical contractors, industrial maintenance teams, panel builders, manufacturing facilities, and engineering workshops that need a dependable professional DMM. Kamadi Pakistan offers the Fluke 177 for accurate day-to-day electrical troubleshooting.

Key Features

• True-RMS voltage and current measurement

• 0.09% basic DC voltage accuracy

• 6000-count backlit display

• Manual and automatic ranging

• Min/Max/Average, Display Hold and Auto Hold


Technical Specifications

• Model: Fluke 177

• DC Voltage: Up to 1000 V; basic accuracy 0.09%

• AC Voltage: Up to 1000 V

• AC/DC Current: Up to 10 A

• Resistance: Up to 50 MΩ

• Capacitance: Up to 9,999 µF

• Frequency: Up to 100 kHz

• Display: 6000 counts with backlight

• Battery Life: Approx. 200 hours

• Safety: CAT III 1000 V / CAT IV 600 V


Applications

• Electrical system troubleshooting

• Industrial maintenance

• Panel and control-system service

• Electrical installation testing

• Electronic equipment repair


Professional Tip: Use Min/Max recording when investigating intermittent supply fluctuations; it can reveal excursions that disappear before a normal displayed reading is observed.
