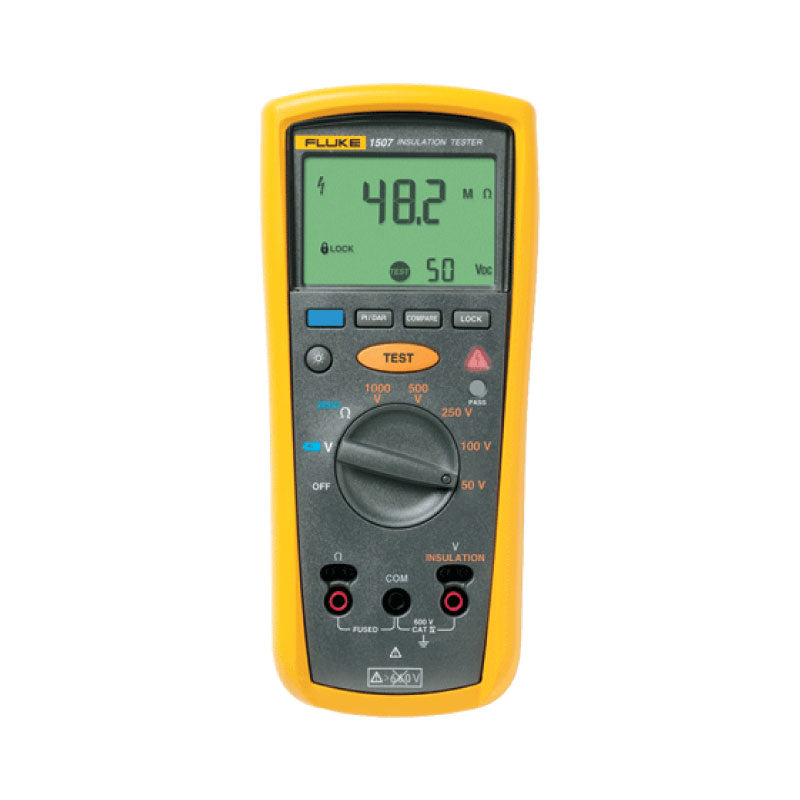

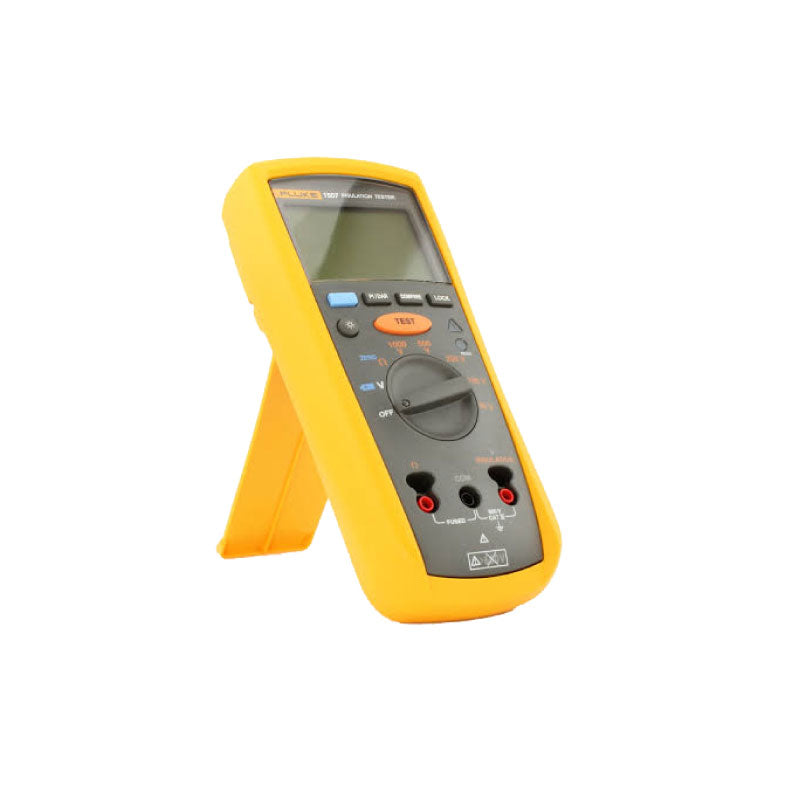

Fluke 1507 | 1000V Digital Insulation Tester with PI/DAR & Pass/Fail

Different electrical equipment can require different insulation-test voltages, particularly when low-voltage controls and larger motors must be checked with the same instrument. The Fluke 1507 Digital Insulation Resistance Tester provides five selectable test voltages from 50 V to 1000 V and insulation measurement up to 10 GΩ.

Automatic Polarization Index and Dielectric Absorption Ratio calculations help technicians evaluate insulation condition over time, while the Compare function provides Pass/Fail indication for repetitive testing against selected limits. The tester also measures AC/DC voltage to 600 V and includes 200 mA continuity testing for earth-bond and winding checks. Live-circuit detection and automatic capacitive discharge support safer field operation. Compared with the 1503, the 1507 is the more versatile preventive-maintenance instrument.

Advanced Handheld Insulation Tester Selection Guide

Choose the 1507 when you need 50, 100 or 250 V tests in addition to 500/1000 V, or when PI/DAR and repetitive Pass/Fail testing improve your maintenance program.

Market Relevance

The Fluke 1507 is well suited to Pakistan's industrial plants, motor-rewinding workshops, utilities, HVAC contractors and electrical maintenance departments. Kamadi Pakistan offers the Fluke 1507 for versatile insulation-condition testing and commissioning.

Key Features

• Five selectable insulation test voltages

• Insulation resistance up to 10 GΩ

• Automatic PI and DAR calculations

• Pass/Fail Compare function

• Remote test-probe operation


Technical Specifications

• Model: Fluke 1507

• Insulation Range: 0.01 MΩ–10 GΩ

• Test Voltages: 50 / 100 / 250 / 500 / 1000 V

• Test Current: 1 mA nominal

• AC/DC Voltage: Up to 600 V

• Resistance Range: 0.01 Ω–20 kΩ

• Continuity Current: >200 mA

• Maximum Capacitive Load: 1 µF

• Auto Discharge: <0.5 s at ≤1 µF

• Battery Performance: >1000 insulation tests


Applications

• Motor insulation testing

• Control-system insulation checks

• Cable commissioning

• Preventive maintenance

• Repetitive production testing

Professional Tip: Use lower insulation-test voltages on sensitive equipment when the manufacturer specifies them, rather than automatically applying 1000 V to every circuit.
