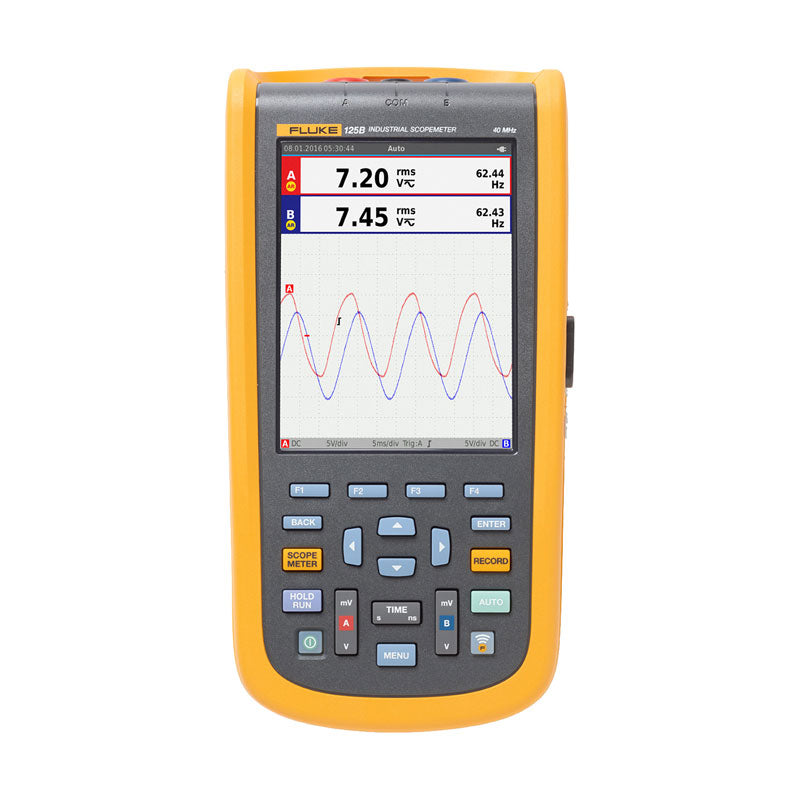

Fluke 125B | 40MHz Industrial ScopeMeter with Bus Health & Harmonics Analysis

Industrial network faults can stop machinery even when conventional voltage and continuity measurements appear normal. The Fluke 125B Industrial ScopeMeter adds Bus Health and power/harmonics analysis to the 40 MHz 120B Series platform, making it particularly useful for automation and electro-mechanical troubleshooting.

Bus Health evaluates electrical signal quality on industrial communication networks and provides a clear Good, Weak or Bad indication for relevant parameters on networks such as CAN-bus, PROFIBUS and Foundation Fieldbus. The instrument also provides cursor measurements, power and harmonic measurements, dual True-RMS meter functions and extended waveform recording. Connect-and-View and IntellaSet simplify waveform setup and numerical analysis. The catalogue package also includes a 10:1 voltage probe and i400s AC current clamp.

Industrial Network ScopeMeter Selection Guide

Choose the 125B when troubleshooting includes industrial communication buses, harmonics or electrical power measurements. The 124B offers the same 40 MHz bandwidth for general waveform analysis without these specialised functions.

Market Relevance

The Fluke 125B is valuable for Pakistani PLC systems, factory automation, packaging machinery, textile machines, process plants and industrial network maintenance. Buy the Fluke 125B from Kamadi Pakistan for combined electrical and industrial-bus diagnostics.

Key Features

• Industrial Bus Health diagnostics

• 40 MHz dual-input oscilloscope

• Power and harmonics measurement

• Scope cursor measurements

• True-RMS meter and recorder functions


Technical Specifications

• Model: Fluke 125B

• Bandwidth: 40 MHz

• Inputs: 2 scope/DMM channels

• Bus Health: Yes

• Power/Harmonics: Yes

• Cursor Measurement: Yes

• 10:1 Voltage Probe: Included

• i400s AC Clamp: Included

• Battery Runtime: Approx. 7 hours


Applications

• Industrial network troubleshooting

• CAN/PROFIBUS diagnostics

• Power and harmonics checks

• Factory automation maintenance

• Electro-mechanical troubleshooting


Professional Tip: A poor Bus Health result should trigger examination of cabling, termination, grounding and signal quality rather than immediate replacement of PLC or network devices.
