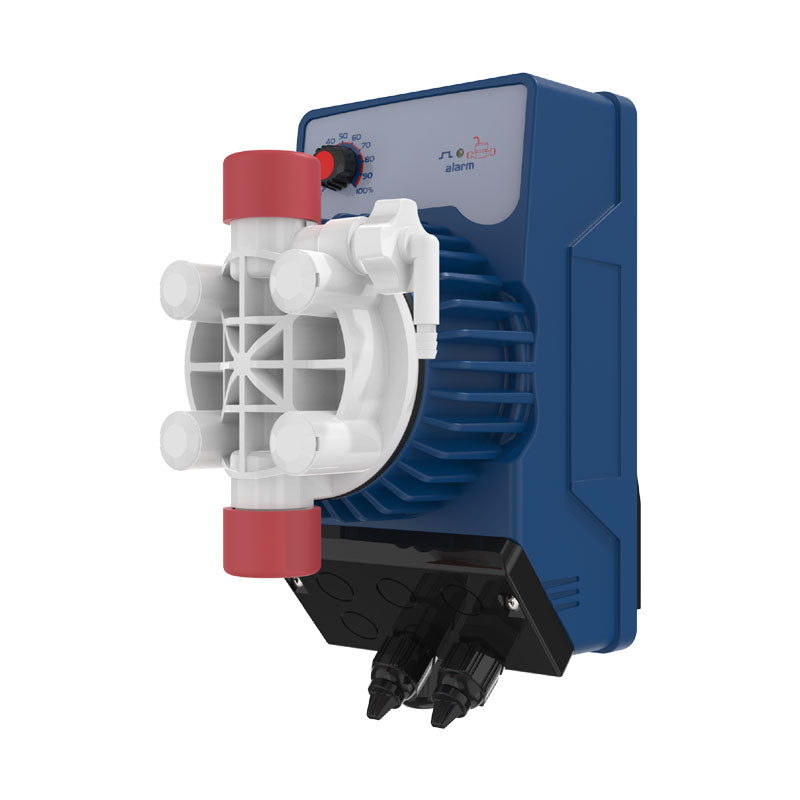

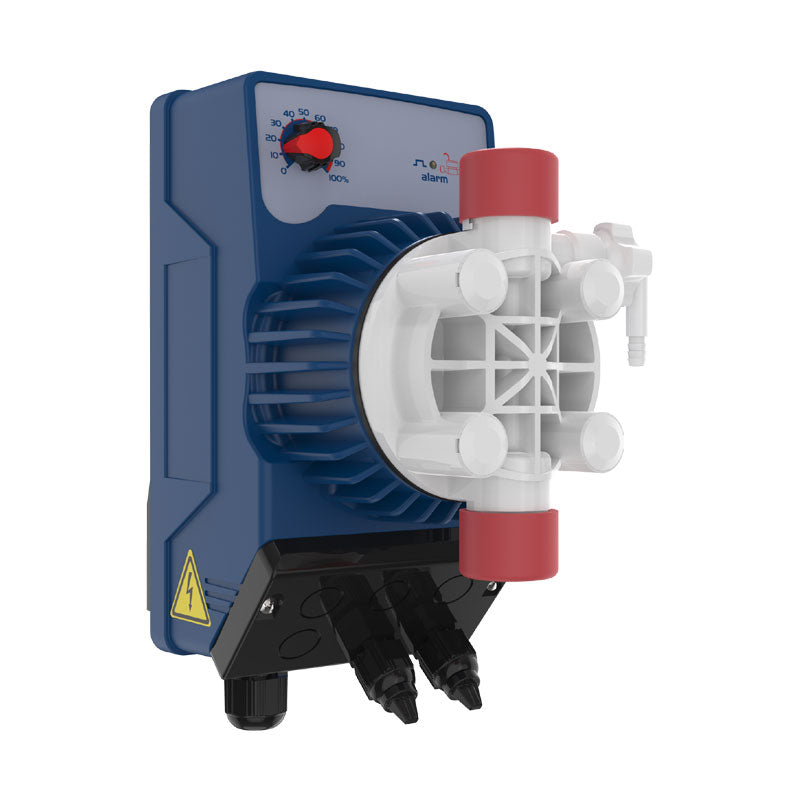

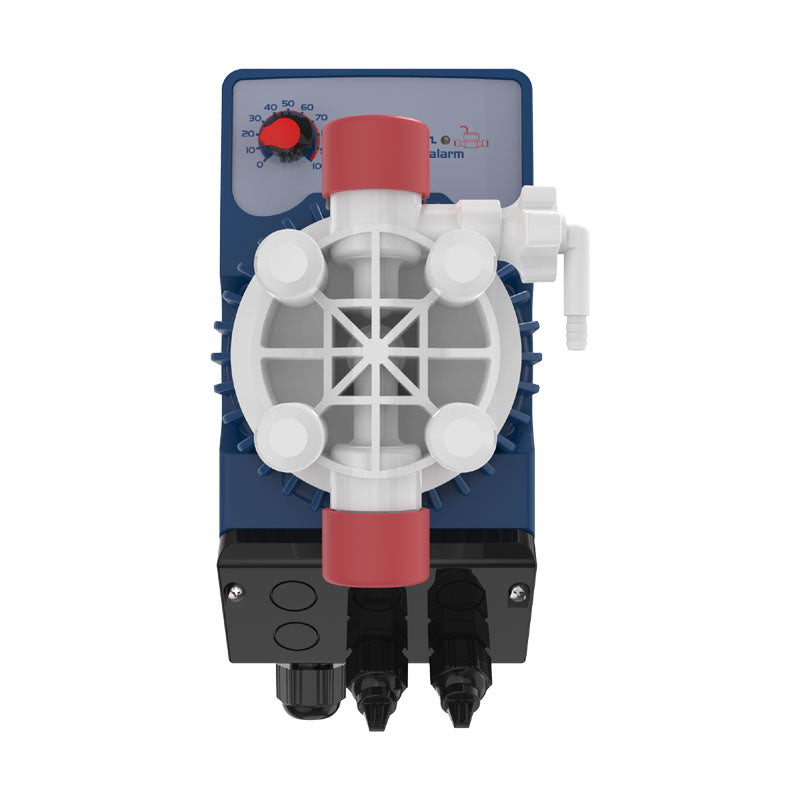

AML200NHH0000 | SEKO KOMPACT Dosing Pump 5L - 8Bar

Take control of your chemical injection with the Seko Kompact AML200NHH0000, a versatile analogue solenoid dosing pump designed for water treatment, swimming pools, and industrial cooling towers in Pakistan. This model belongs to the "AML" series, which offers a critical advantage over the standard AMS model: it features a Level Control Input. This allows the pump to connect to a tank level probe, automatically stopping dosing when your chemical tank is empty to prevent dry running and system damage.

The pump delivers a constant flow rate of 5 liters per hour at 8 bar (adjustable via a front-panel dial). Built for durability, it features a premium PVDF pump head, Ceramic ball valves, and a PTFE (Teflon) diaphragm that is virtually wear-free, ensuring compatibility with harsh chemicals like chlorine, acids, and fertilizers. Its IP65 polypropylene casing protects the internal electronics from water jets and aggressive fumes, making it a "fit and forget" solution for harsh environments.

Key Features of Seko Dosing Pump Kompact AML200

• Smart Level Control Input: Unlike the standard AMS model, this AML pump connects to a level probe. It automatically stops dosing when your chemical tank runs dry, protecting the pump from burning out.
• Premium PVDF Pump Head: The liquid end is made of PVDF-T (Kynar) and Ceramic ball valves, offering superior resistance to aggressive chemicals like Chlorine, Sulfuric Acid, and Caustic Soda.
• Multi-Voltage Stabilization: Designed for industrial reliability, the power supply accepts 100–240 VAC. This built-in stabilization protects the pump against voltage fluctuations common in local grids.
• Constant Dosing Precision: The analog interface allows you to adjust the flow rate manually from 0% to 100% via a robust control knob, ensuring steady chemical injection.
• Complete Installation Kit: Comes ready to use with a foot filter, injection valve, mounting bracket, and suction/delivery tubes.

Technical Specifications

• Model: AML200NHH0000
• Max Flow Rate: 5 Liters/Hour
• Max Pressure: 8 Bar
• Stroke Rate: 160 strokes/minute
• Pump Head Material: PVDF-T (Polyvinylidene Fluoride)
• Diaphragm Material: PTFE (Teflon)
• Power Supply: 100 - 240 Vac, 50/60Hz (14 Watts)
• Protection Rating: IP65 (Dust and Water resistant)

Frequently Asked Questions:

Q: What is the difference between Seko Kompact AMS and AML?

A: The AMS is the basic manual model. The AML (this model) adds a Level Control Input. This input allows you to connect a float switch (level probe) from your chemical drum. If the chemical runs out, the AML pump detects it, stops pumping, and triggers an alarm LED, whereas the AMS would keep pumping air.

Q: What do the "C" and "P" switch positions do?

A: These allow for finer control of the dosing percentage:

Position C (Constant): The dial adjusts the flow from 0% to 100% of the pump's capacity.

Position P (Proportional/Precision): The dial adjusts the flow from 0% to 20% of the capacity. This is perfect for when you need to dose very small amounts accurately.

Q: Is this pump compatible with Sulfuric Acid or Chlorine?

A: Yes. The liquid end is made of PVDF (pump head), Ceramic (balls), and FPM/Viton (seals), with a PTFE diaphragm. This combination offers excellent resistance to most aggressive water treatment chemicals, including Sodium Hypochlorite (Chlorine) and Sulfuric Acid.

Buy Now: Automate your chemical dosing with confidence. Order the authentic Seko Kompact AML200NHH0000 exclusively at Kamadi Pakistan for the best price, official warranty, and expert technical support!
